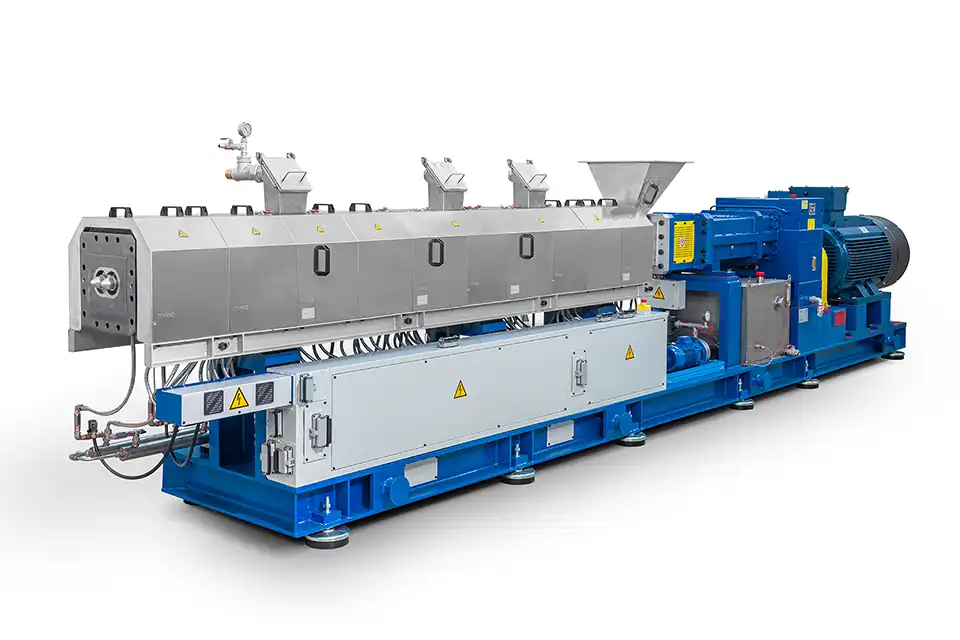

COMPOUNDING LINES
TWIN-SCREW EXTRUDERS AND COMPLETE LINES FOR COMPOUND
COMAC’s highly flexible compounding lines allow for the production of commodities, engineered and specialty compounds.
Matching the latest market trends, COMAC proposes extruders to produce a wide range of high added value compounds.
COMAC also supplies high output plants for standard compounds.
The process is PLC managed with latest generation software developed by COMAC providing a complete control of the production parameters.
| Model | EBC 50 | EBC 60 | EBC 70 | EBC 90 | EBC108 | EBC 120 | EBC 135 |
|---|---|---|---|---|---|---|---|
| Nominal diameter (mm) / High volume (mm) | 53/55 | 62/64 | 70/72 | 92/94 | 108/112 | 120/123 | 132/135 |
| Screw number of lobes | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| L/D ratio (std. range) | 24 – 52 | 24 – 52 | 24 – 52 | 24 – 52 | 24 – 52 | 24 – 52 | 24 – 52 |
| Indicative output (kg/h) | 200 – 500 | 300 – 750 | 500 – 1400 | 1000 – 2200 | 1100 – 3000 | 1200 – 4000 | 1700 – 6000 |
NOTE:
L/D – typically, barrels are built-up by independently thermoregulated modules having 4-diameter length each;
Output – the ranges here above give an idea on limits considering a variety of cases, but, figures are only indicative; achievable values strongly depend on raw material formulations, target products and relevant desired characteristics, as well as speed and process conditions.
